Products >> Drives: SqDC4 Series Drive


Low-Voltage 4-Axis Brushed DC Motor SynqNet Drive

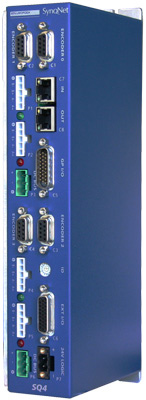

The SqDC4 is a low voltage 4-axis SynqNet DC-Brush drive module, where each axis can supply up to 3Arms continuous and 5A peak from a 42V supply. Each axis has a programmable 0-4 Amp current limit, encoder feedback, and a range of dedicated I/O. System wide phase to neutral short circuit protection and over temperature protection is implemented to provide system protection.

SqDC4 Drive Datasheet pdf
